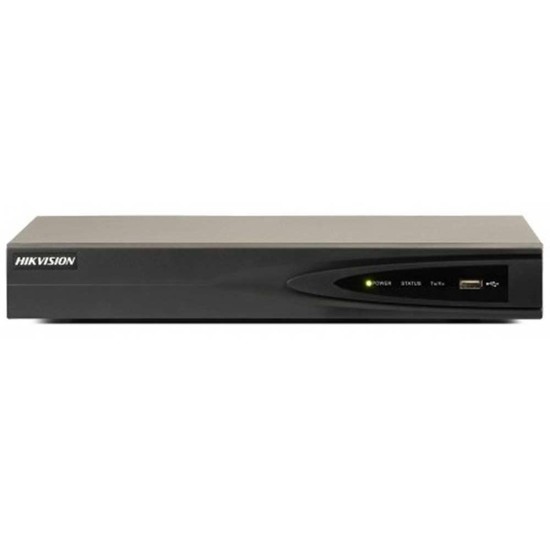

Ds-7604Ni-K1

4 Kanal kayıt 4, Kanal PoE, 40 Mbps Kayıt 80 Mbps İzleme, 1 Adet 6TB'ye Kadar Disk Desteği, 8 MP Maks. Çözünürlükte Kayıt, H.265/H.264/H.264+ Video Sıkıştırma, -10°C / +55°C Çalışma Sıcaklığı, 48V DC, PoE+ (802.3at).

• Video And Audio
• IP Video Input4-ch
• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
• VGA Output1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)

• Decoding
• Decoding FormatH.265+/H.265/H.264+/H.264
• Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
• Synchronous Playback4-ch
• Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Network
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE
• Interface4-ch
• Power≤ 50 W
• StandardIEEE 802.3 af/at

• RAID
• RAID TypeNo

• Auxiliary Interface
• SATA1
• CapacityUp to 8TB capacity for each disk
• USB Interface2 × USB 2.0
• Alarm In/OutN/A (4/1 is optional)

• General
• Power Supply48 VDC, 1.35 A
• Consumption≤ 10 W (without enabling PoE)
• Working Temperature-10 to +55° C (14 to 131° F)
• Working Humidity10 to 90 %
• Chassis1U
• Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
• ≤ 1 kg (2.2 lb)
