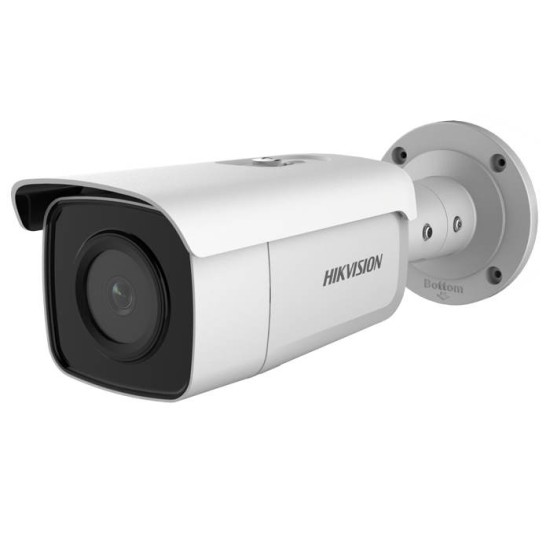

Ds-2Cd2T46G2-2I

4MP AcuSense Bullet IP Kamera 60 metre IR (H.265+), 1/3" Progressive Scan CMOS, 2688x1520 (4MP@30fps), 3.6mm Lens(2.8-4-6-mm opsiyonel), H.265+ Görüntü sıkıştırma formatı, Triple Stream, 3D DNR, 120dB-WDR, BLC, HLC, ROI, Video Analiz Desteği (Hat geçiş algılama, İzinsiz giriş tespiti, bölge giriş tespiti, bölgeden çıkış tespiti, Yüz yakalama ve Sahne değişimi algılama), 60 metre gece görüş mesafesi, Micro SD/SDHC 256GB kart girişi, ONVIF, IP67, 12V DC ve PoE Desteği.

• Kamera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens
• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°

  4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°

  6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.4

• DORI
• DORI

  2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

  4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m

  6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light Range

  2I: Up to 60 m

  4I: Up to 80 m

• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.265+/H.264+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported
