Ds-2Cd1023G0-Iuf

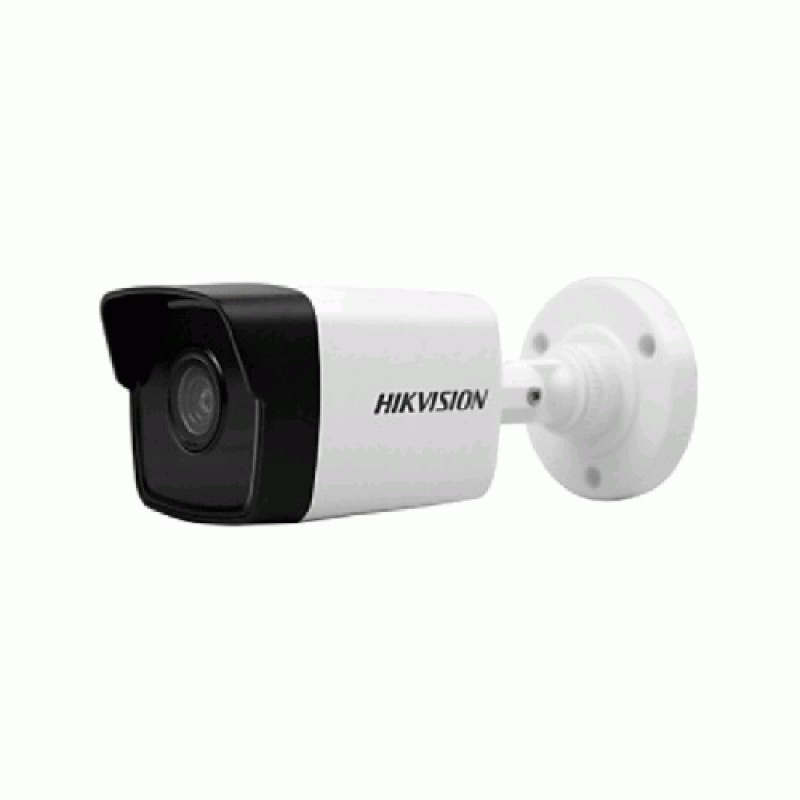

2MP Çözünürlük, Mini IR Bullet Kamera (H.265)-(DAHİLİ SES), 1/2.8" PS CMOS, 0,01Lux renkli, 2.8 mm sabit lens, 30mt IR aydınlatma mesafesi, ICR, 3D DNR, DWDR, ROI, Antiflicker, maskeleme, aynalama, ONVIF, IP67, 12V DC veya PoE

 Specification Camera Image Sensor 1/2.7" Progressive Scan CMOS Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR Shutter Speed 1/3 s to 1/100, 000 s Slow Shutter Yes Wide Dynamic Range Digital WDR Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° Lens Focal Length & FOV 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6° Lens Mount M12 Focus Fixed Aperture F2.0 Illuminator IR Wavelength 850 nm IR Range Up to 30 m Video Max. Resolution 1920 × 1080 Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile H.264+ Main Stream supports H.265+ Main Stream supports Region of Interest (ROI) 1 fixed region for main stream Audio Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate 8 kHz/16 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live View Up to 6 channels API Open Network Video Interface, ISAPI User/Host Up to 32 users. 3 levels: administrator, operator and user Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage Client iVMS-4200, Hik-Connect Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Image Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser. Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, 3D DNR Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB Built-in Microphone Yes Hardware Reset Yes Event Basic Event Motion detection, video tampering alarm, exception General Linkage Method Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture Camera Material Metal & Plastic Camera Dimension 177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7") Package Dimension 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") Camera Weight Approx. 270 g (0.6 lb.) With Package Weight Approx. 490 g (1.1 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) Web Client Language English, Ukrainian General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Firmware Version V5.5.120 Power Consumption and Current 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W Power Supply 12 VDC ± 25% PoE: 802.3af, Class 3 Power Interface Ø 5.5 mm coaxial power plug Approval EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013)
