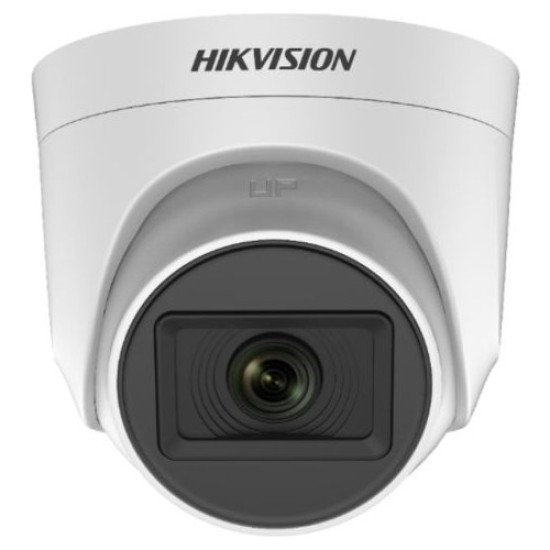

Ds-2Ce76H0T-Itpfs

2560×1944 5MP Yüksek Çözünürlük, Digital WDR, 2.8 mm Sabit Lens, Smart IR ile 20 mt Gece Görüş Mesafesi, Koaksiyel kablo üzerinden ses, dahili mikrofon, 4'ü 1 arada video çıkışı (değiştirilebilir TVI/AHD/CVI/CVBS).

• Camera
• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) × 1944 (V)
• Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightICR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°

  3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°

  6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart IR
• Frame Rate

  TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

  CVI: 4MP@30fps, 4MP@25fps

  AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• White BalanceATW/MANUAL
• AGCSupport

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Material

  Plastic

• DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
• Approx. 140.5 g (0.31 lb.)
• Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption

  Max. 3.7 W

• IR RangeUp to 20 m
