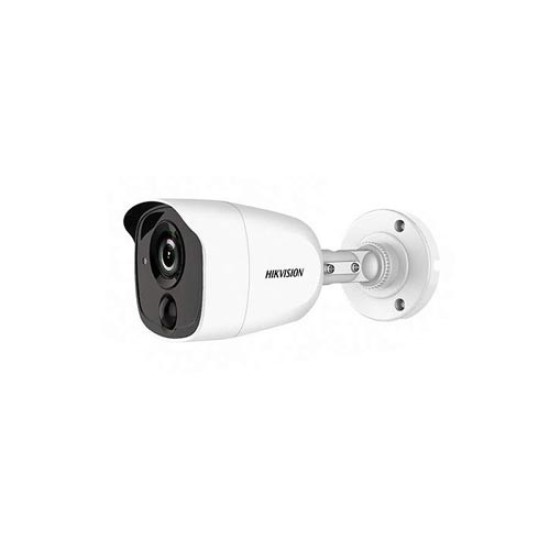

Ds-2Ce11D0T-Pirlpo

2MP PS CMOS sensör, 3.6mm Lens, ICR, 0.01 Lux/F1.2, 0 lux (IR Açık), Görsel Alarm, AGC, Beyaz Dengesi, AWB, BLC, Smart IR, PIR sensör (110°, 11mt), Coax kontrol, IP67, 20m IR, 12VDC

• Kamera
• Image Sensor2MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightICR
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
• Signal SystemPAL/NTSC
• Light AlarmYes

• Lens
• Lens Type2.8 mm, 3.6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 103°, vertical FOV: 56°, diagonal FOV: 122°

  3.6 mm, horizontal FOV: 82.2°, vertical FOV: 44°, diagonal FOV: 94°

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, DNR , Mirror, Smart IR
• Frame RateTVI: 1080P@25fps, 1080P@30fps
• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• White BalanceAuto/Manual
• White LightAUTO/OFF
• AGCSupport

• Interface
• Video Output1 HD analog output

• General
• MaterialPlastic
• Dimension68 mm × 70 mm × 179.8 mm (2.68" × 2.76" × 7.08")
• Approx. 190 g (0.42 lb.)
• Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 2.9 W
• IR RangeUp to 20 m

• Approval
• ProtectionIP67
