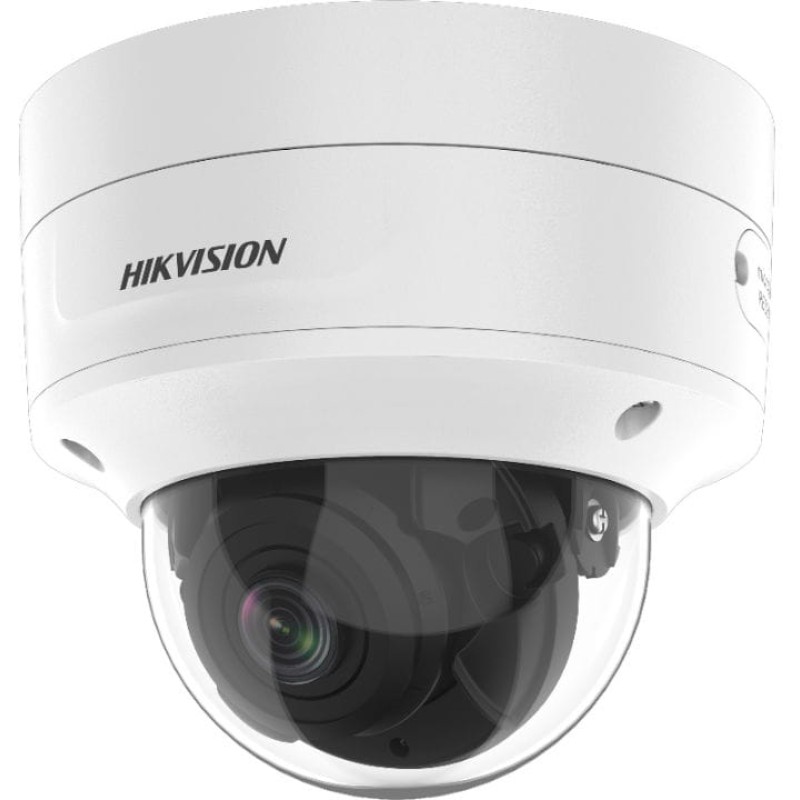

2.8-12mm auto Lens , 1/2.8" Progressive Scan CMOS, Renkli: 0.002Lux @(F1.4, AGC açık) , 1920x1080: video çözünürlük, H.265+ / H.264 / MJPEG, 40 m'ye kadar IR mesafesi, Video Bit Hızı 32 Kbps ila 8 Mbps, 1x1 ses giriş çıkışı, 1x1 alarm giriş çıkışı, 120dB WDR, Gece/Gündüz ICR, 3D DNR, BLC, ROI, IP67, IK10, 256GB micro SD, Hareket algılama, video kurcalama alarmı, istisna (ağ bağlantısı kesildi, IP adresi çakışması, yasadışı oturum açma, HDD dolu, HDD hatası), sahne değişikliği algılama Akıllı (Derin Öğrenme Algoritması)Yüz Yakalama,Çevre Koruması,Çizgiyi geçme tespiti analizleri

• Kamera
• Image Sensor1/2.8" Progressive Scan CMOS
• Min. IlluminationColor: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Wide Dynamic Range120 dB
• Day & NightIR cut filter
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
• P/NP/N
• Power-Off MemoryYes

• Lens
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 113° to 31°, vertical FOV 58° to 18°, diagonal FOV 138° to 36°
• Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
• ApertureF1.4
• Lens MountØ14
• Iris TypeFixed

• DORI
• DORI

  2.8 to 12 mm:

  Wide: D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m

  Tele: D: 131.0 m, O: 52.0 m, R: 26.2 m, I: 13.1 m

• Illuminator
• IR RangeUp to 40 m
• IR Wavelength850 nm
• Smart Supplement LightYes
• Supplement Light TypeIR

• Video
• Max. Resolution

  1920 × 1080

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Smooth StreamingYes
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• SNR≥ 52 dB
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interface
• Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Audio

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
• Hardware ResetYes
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event
• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart EventScene change detection

• Deep Learning Function
• Face CaptureYes
• Perimeter Protection

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection

  Supports human and vehicle targets classification

• General
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply

  12 VDC ± 25%, reverse polarity protection

  PoE: 802.3af, Class 3

• Power Consumption And Current

  12 VDC, 0.88 A, max. 10.5 W

  PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W

• Power InterfaceØ5.5 mm coaxial power plug
• Camera MaterialMetal
• Camera DimensionØ153.3 mm × 111.6 mm (6.0" × 4.4")
• Package Dimension244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
• Camera WeightApprox. 880 g (1.9 lb.)
• With Package WeightApprox. 1479 g (3.3 lb.)
• Linkage MethodUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, trigger alarm output, audible warning, send email
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Software ResetYes
• Firmware VersionV5.5.113

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);LOA (IEC/EN 60950-1)
• EnvironmentCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
