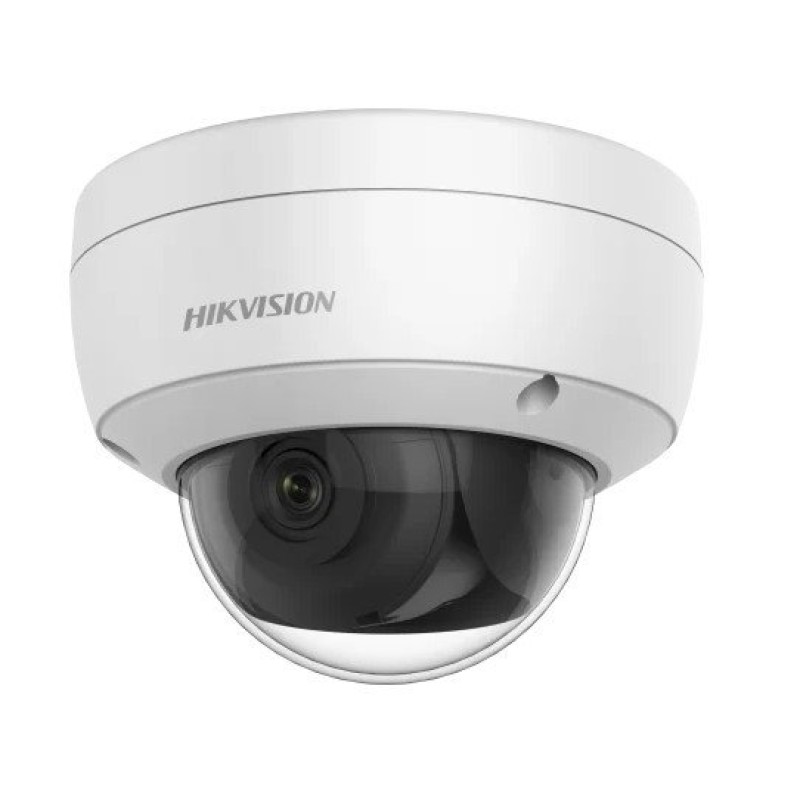

2MP Çözünürlük ile 1/2.8" CMOS sensör, 2.8mm sabit lens, IR Dome kamera, H.265, H.265+ sıkıştırma teknolojisi, 40mt Gece Görüş Mesafesi, aydınlatma, WDR, ICR, 3D DNR, BLC, HLC Maskeleme, Hareket algılama, Üçlü akış, Hareket algılama (insan ve araç hedefleri sınıflandırması), Video kurcalama alarmı, İstisna, Sahne değişikliği algılama, Yüz Yakalama, Hat geçisi tespiti, İzinsiz giriş tespiti, Bölge giriş tespiti, Bölge çıkışı tespiti, İnsan ve araç hedef sınıflandırmasını destekler, IP67 ve IK10 Koruma Sınıfı, Ses alarm giriş ve çıkışı, 12V DC veya PoE, MicroSD kart desteği.

• Kamera
• Image Sensor1/2.8″ Progressive Scan CMOS
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• P/NP/N
• Wide Dynamic Range120 dB
• Day & NightICR Cut
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

• Lens
• Lens Type & FOV2.8 to 12 mm, horizontal FOV 106.6° to 31.7°, vertical FOV 54.7° to 17.7°, diagonal FOV 130.3° to 36.4°
• ApertureF1.6
• Lens MountØ14

• DORI
• DORI2.8 to 12 mm: D: 44.1 m to 137.9 m, O: 17.5 m to 54.7 m, R: 8.8 m to 27.5 m, I: 4.4 m to 13.8 m

• Illuminator
• IR RangeUp to 40 m
• Wavelength850 nm

• Video
• Max. Resolution

  1920 × 1080

• Main Stream

  50Hz: 25 fps (1920 × 1080, 1280 × 720)

  60Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub Stream

  50Hz: 25 fps (640 × 480, 640 × 360)

  60Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main Stream supports
• H.265+Main Stream supports
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)

  Yes

• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)

• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interface
• Audio

  -S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

  1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
• On-Board StorageBuilt-in micro SD, up to 256 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

• Event
• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Face DetectionYes

• Deep Learning Function
• Perimeter Protection

  Line crossing detection, intrusion detection

  Supports human and vehicle targets classification

• General
• Linkage MethodUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply

  12 VDC ± 25%, reverse polarity protection

  PoE: 802.3af, Class 3

• Power Consumption And Current

  12 VDC, 0.88 A, max. 10.5 W

  PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W

• Power InterfaceØ5.5 mm coaxial power plug
• Material

  Upper cover and base: metal

  Bubble: plastic

• Camera DimensionØ153.3 × 111.6 mm (Ø6.1″ × 4.4″)
• Package Dimension244 × 174 × 173 mm (9.7" × 6.9" × 6.9")
• Camera WeightApprox. 880 g (1.9 lb.)
• With Package WeightApprox. 1419 g (3.1 lb.)

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
