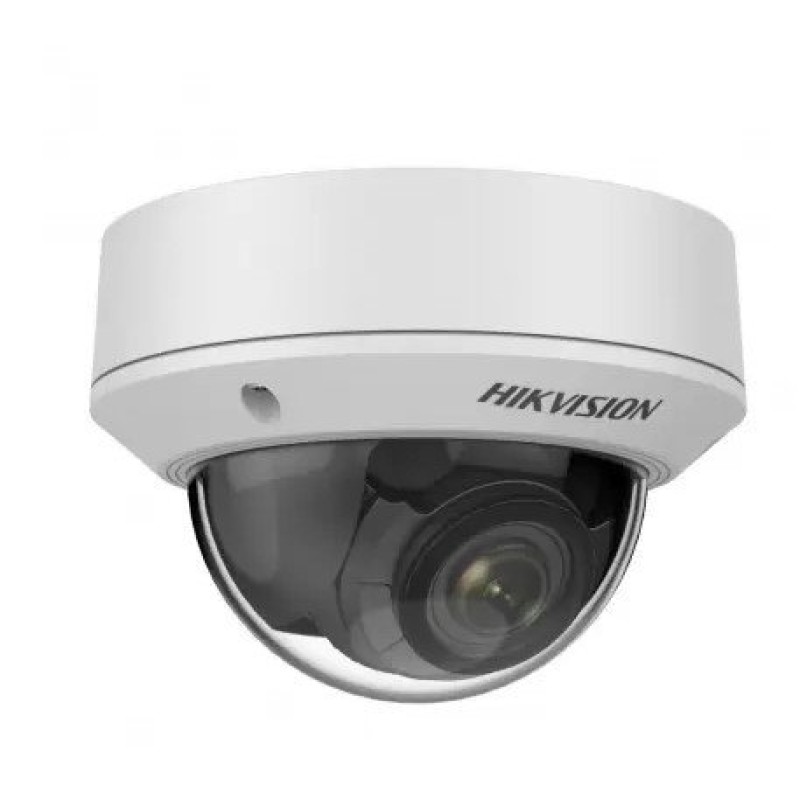

4MP Çözünürlük ile 1/3" CMOS sensör, 2.7-13.5mm motorized vari-focal lens, H.265, H.265+ sıkıştırma teknolojisi, 50mt Gece Görüş Mesafesi, WDR, ICR, BLC, 3D DNR, Maskeleme, Hareket algılama, Hareket algılama, Video kurcalama alarmı, Ağ bağlantısı kesildi, IP adresi çakıştı, Hat geçisi algılama, İzinsiz giriş algılama, Yüz algılama, IP67 ve IK10 Koruma Sınıfı, Ses alarm giriş ve çıkışı, 12V DC veya PoE, MicroSD kart desteği.

Camera Image Sensor 1/3" progressive scan CMOS Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON) Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter Slow Shutter Yes Auto-Iris No Day &Night IR cut filter Digital Noise Reduction 3D DNR WDR 120 dB Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360° Lens Focal Length 2.7 to 13.5 mm Aperture F1.6 Focus Auto FOV Horizontal field of view: 98° to 28° Vertical field of view: 51° to 16° Diagonal field of view: 115° to 32° Lens Mount Φ14 IR IR Range Up to 50 m Wavelength 850 nm Compression Standard Video Compression Main stream: H.265/H.264 Sub stream/Third stream: H.265/H.264/MJPEG H.264 Type Baseline Profile/Main Profile/High Profile H.264+ Main stream supports H.265 Type Main Profile H.265+ Main stream supports Video Bit Rate 32 Kbps to 8 Mbps Audio Compression G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) Smart Feature-set Region of Interest 1 fixed region for main stream and sub-stream Behavior Analysis Line crossing detection, intrusion detection, Exception Detection audio exception detection Face Detection Yes Image Max. Resolution 2560 × 1440 Main Stream Max. Frame Rate 50Hz: 30fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) Sub-stream Max. Frame Rate 50Hz: 30fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third steam Max. Frame Rate 50Hz: 1080P@1fps 60Hz: 1080P@1fps Image Enhancement BLC, 3D DNR,HLC Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Specification
